Name: TH07 series touch screen haze meter
Brand: CHNSpec
Price: 1 USD

Brand Name : CHNSpec

Model Number : TH-07 series

Certification : CE Certificate

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 1000 per month1、Product features

Delivery Time : 5-7 days

Packaging Details : Carton box with foam package

Display : 7-inch IPS full-view LCD screen

Interface : USB interface

Weight : 6kg

Repeatability : 0.05

Contact Now

I. Product Features

Standard 0/d optical structure: More accurate test data
Meet three haze standards: GB/T 2410, ASTM D 1003/1004, ISO13468/14782
Ultra-long lifespan: The lifespan of the light source is 5 years and 5 million times
Precise measurement: Resolution 0.01, repeatability 0.05
Massive storage: A single machine can store 20,000 sets of data
Touch operation: Capacitive touch screen, smoother operation
Clear display: 7-inch IPS full-view screen
Data Management: Standard PC software is provided, supporting data export and report printing

II. Technical Parameters

Product model	TH-05	TH-06	TH-07
Light source	CIE-A,CIE-C	CIE-A,CIE-C,CIE-D65
Follow the standards	ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
Measurement parameters	Haze and transmittance under ASTM standards	Haze and transmittance under both ASTM and ISO standards
Spectral response	CIE spectral function Y/V(λ)
Optical path structure	0/d
Measurement diameter	21mm	21mm,7mm
Range	0-100%
Resolution	0.1	0.01%
Repeatability	0.1	0.08	0.05
Sample size	Thickness ≤145mm
Display	7-inch IPS full-view LCD screen
Touch	Capacitive touch screen
Store data	10,000 values	20,000 values
Light source lifespan	Five million times in five years
Interface	USB interface
Power supply	DC 12V/3A
Working temperature	5 to 40℃, relative humidity 80% or lower (at 35℃), no water vapor condensation
Storage temperature	-20 to 45℃, relative humidity 80% or lower (at 35℃), no water vapor condensation
Volume	Length X width X height: 310mmX215mmX540mm
Weight	6kg
Standard configuration	PC management software(HAZE QC)
Optional	Measuring fixtures, haze standard plates, custom diameter plates

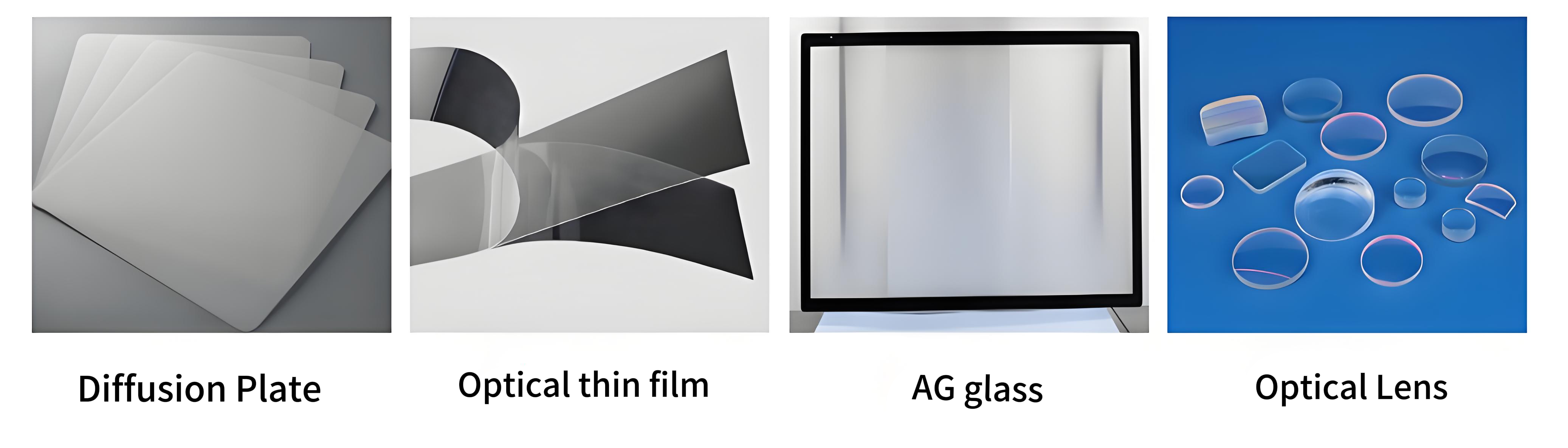

III. Application Fields

TH-07 series touch screen haze meter Images
